Gala Atlantis
Atlantis Aquahelm
A compact steering-console layout for owners who want helm control without moving into a larger tender.
A300Q · A330Q · A360Q · A390Q
Serving Gala buyers across the Southeast and Mid-Atlantic from the Knoxville area, with delivery available within a 500-mile radius.
Build your tender
Build your Atlantis Aquahelm
Choose your model, pick your options, and Karl will confirm availability and your final quote.
2027 Gala MSRP in USD, FOB Concord, Ontario. Motor, shipping, rigging, and tax are additional. Karl confirms availability and the final quote. Prices may change.
A300Q
$6,344 · PVC tube
$8,785 · Hypalon tube
- Length overall: 300 cm / 9’10
- Passenger capacity (Canadian): 4
- Engine MAX: 20 HP
A330Q
$6,668 · PVC tube
$9,311 · Hypalon tube
- Length overall: 330 cm / 10’10
- Passenger capacity (Canadian): 4
- Engine MAX: 30 HP
A360Q
$7,006 · PVC tube
$9,912 · Hypalon tube
- Length overall: 360 cm / 11’10
- Passenger capacity (Canadian): 5
- Engine MAX: 30 HP
A390Q
$7,629 · PVC tube
$10,959 · Hypalon tube
- Length overall: 390 cm / 12’10
- Passenger capacity (Canadian): 5
- Engine MAX: 30 HP
Images

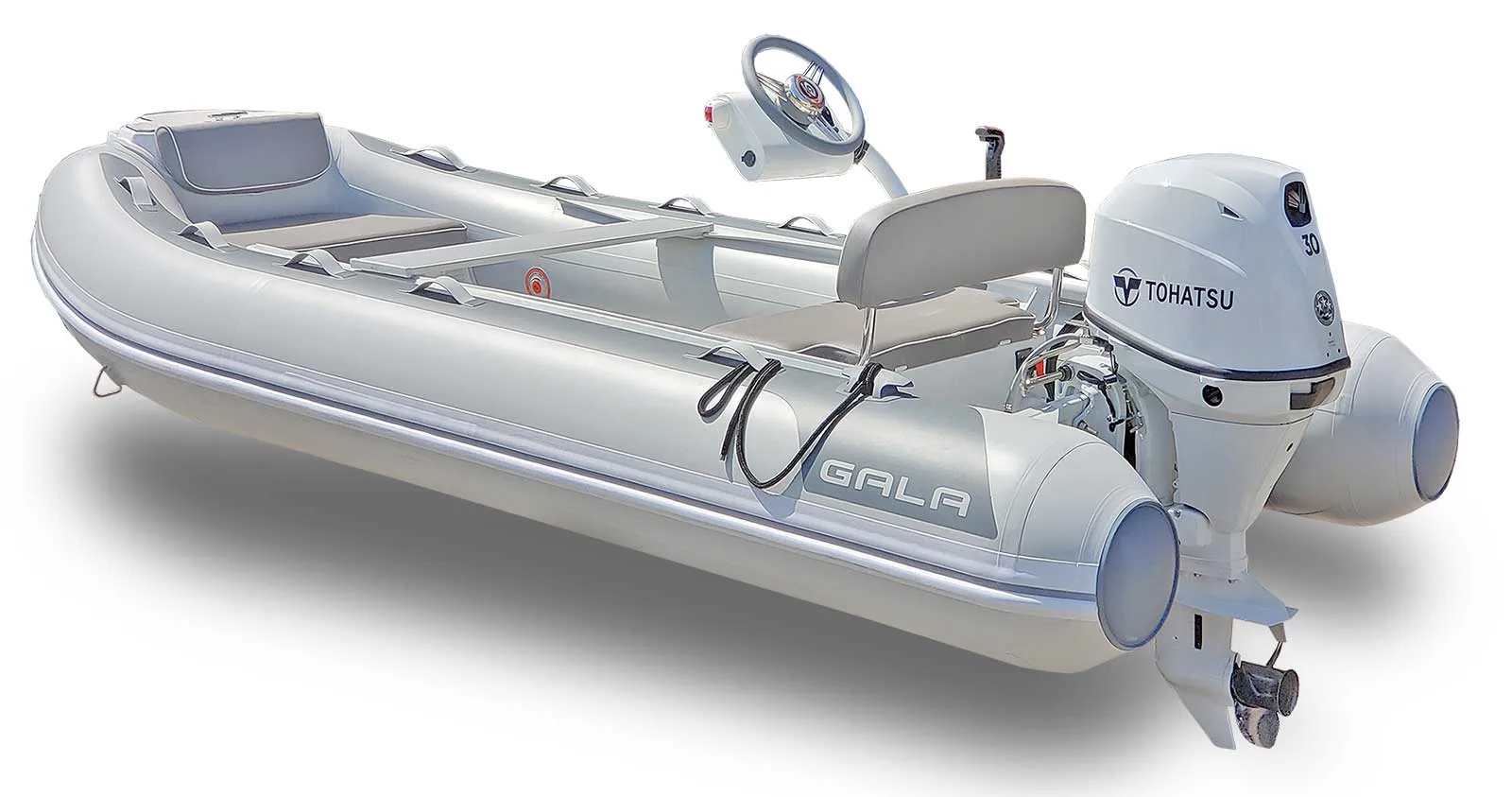

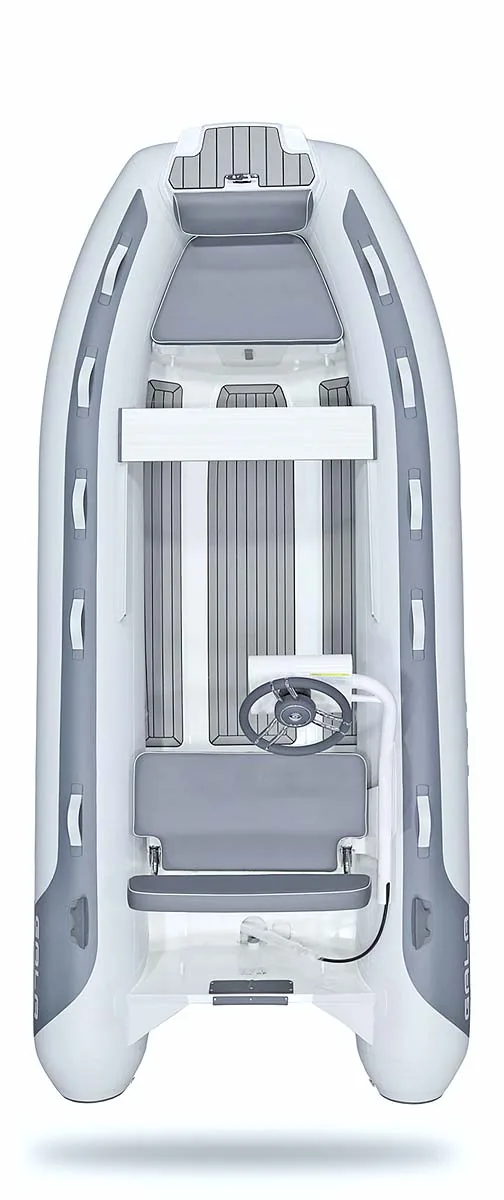

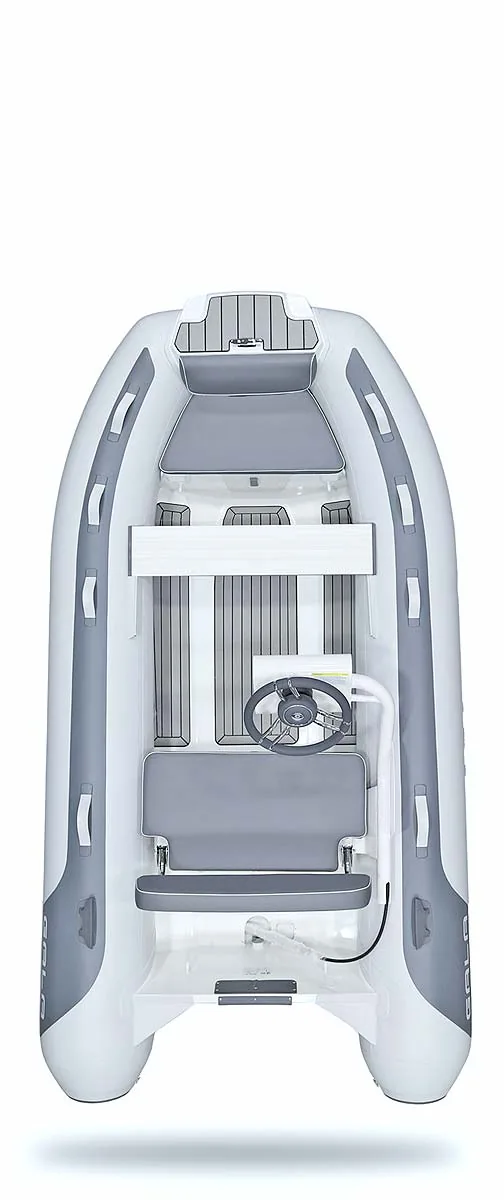

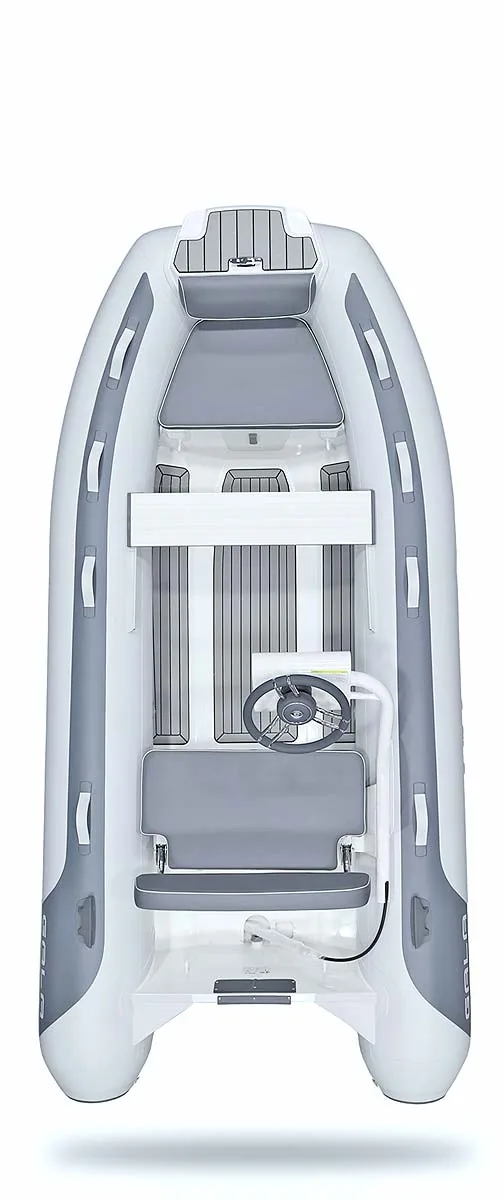

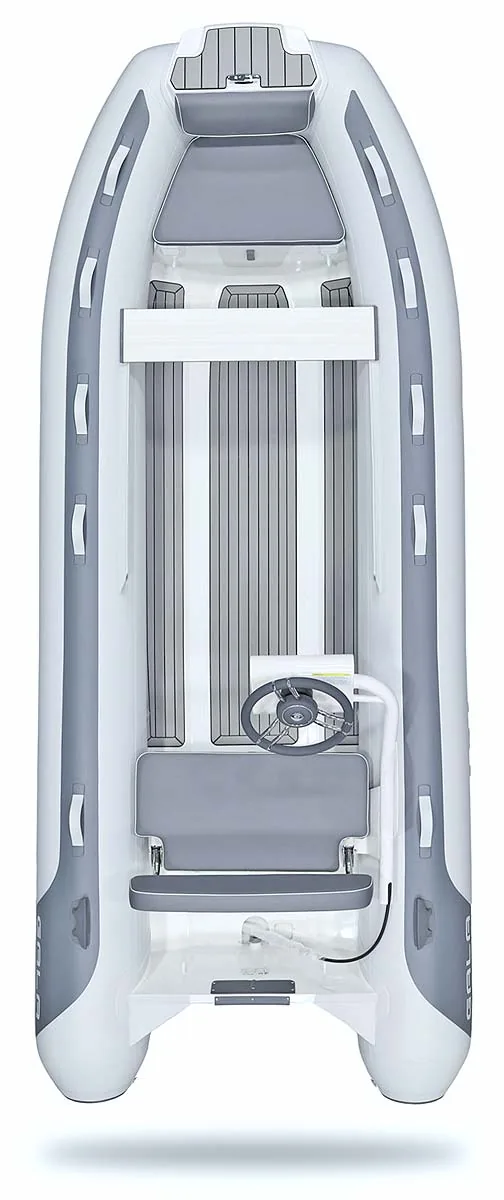

See the Atlantis Aquahelm
Video
Atlantis Aquahelm on film
Start with Gala's official manufacturer video, then ask Karl how the published layout and performance fit your boat and your water.
Features
Five manufacturer highlights
- 01
GALA TABS hull design
- 02
CONSOLE SLIM DESIGN
- 03
A LOT OF FREE LEG ROOM
- 04
EXTREMELY LOW WEIGHT
- 05
OVERPRESSURE VALVE
Standard features
- Medium-V, powder-coated aluminum hull with antiskid decking and hidden reinforced transom brackets.
- ENVIROX chromate-free titanium hull protection
- «GALA TABS» – special patented GALA hull design with transom extensions.
- Spacious bow locker with access hatch.
- Bow locker cushion
- AQUAHELM S-08 double seat with steering arm, soft cushion, folding set back and storage.
- SILVERTEX upholstry
- Steering wheel with steering cable and wheel.
- One aluminum seat with sliding installation system.
- Substantial keel protector.
- 4 lifting eyes and 3 towing bow eyes.
- Bow handle and two rear handles.
- GALA bow cleat and 8/10 grab handles.
- Soft curved 3-chamber PVC or Hypalon buoyancy tube with rounded bow and original «GALA-JET» design.
- Overpressure valve.
- Tough rubbing strake with splash guard.
- One-way drain valve with pull-up handle.
- Two collapsible paddles.
- High-efficiency foot pump.
- Repair kit and manual.
Optional equipment
- Overall cover
- Seat cover
- Removable soft seat
- Underseat bag
- Electric package
- SEADECK flooring upgrade
- Diamond stitch upholstery upgrade
- Bow step plate
- Upgrade to 20″ high transom for long shaft motors on A360Q, A390Q
- GPS mounting bracket
- Removable fishing panel with 2 rod holders
- Bow locker / arm upgrade for electric engines
- Two side step panels
- SEADECK for two side steps
- Stainless Steel Folding Ladder
Specifications
Compare the published dimensions
| Models | A300Q | A330Q | A360Q | A390Q |
|---|---|---|---|---|
| Length overall | 300 cm / 9’10 | 330 cm / 10’10 | 360 cm / 11’10 | 390 cm / 12’10 |
| Length inside | 222 cm / 7’3″ | 252 cm / 8’3″ | 282 cm / 9’3″ | 310 cm / 10’2″ |
| Width overall | 170 cm / 5’7″ | 170 cm / 5’7″ | 170 cm / 5’7″ | 170 cm / 5’7″ |
| Width inside | 82 cm / 2’8″ | 82 cm / 2’8″ | 82 cm / 2’8″ | 82 cm / 2’8″ |
| Tube Diameter | 44 cm / 17″ | 44 cm / 17″ | 44 cm / 17″ | 44 cm / 17″ |
| Bare boat weight | 97 kg / 213 lbs | 103 kg / 226 lbs | 109 kg / 240 lbs | 123 kg / 271 lbs |
| Loading capacity | 500 kg / 1100 lbs | 550 kg / 1210 lbs | 600 kg / 1320 lbs | 650 kg / 1430 lbs |
| Passenger capacity (Canadian) | 4 | 4 | 5 | 5 |
| Passenger capacity (International) | 5 | 5 | 6 | 6 |
| Number of chambers | 3 | 3 | 3 | 3 |
| Engine recommended | 10 HP | 20 HP | 20 HP | 20 HP |
| Engine MAX | 20 HP | 30 HP | 30 HP | 30 HP |
| Engine weight MAX | 50 kg / 110 lbs | 60 kg / 132 lbs | 70 kg / 154 lbs | 70 kg / 154 lbs |
| Engine shaft length | 15″ (short) | 15″ (short) | 15″ (short) / 20″ upgrade | 15″ (short) / 20″ upgrade |
| Aluminum hull thickness | 2.5 mm / 7/64″ | 2.5 mm / 7/64″ | 2.5 mm / 7/64″ | 3 mm / 1/8″ |
| Boat design category | C | C | C | C |
Specifications were verified against Gala's manufacturer page on 2026-07-22. Gala notes that technical data can change and published dimensions and weights carry tolerances. Karl confirms the current configuration before purchase.
Colors
Tube and decor options
LIGHT GRAY / GRAY
Light gray tube with gray decor. White hull. (Default color)
WHITE / GRAY
White tube with gray decor. White hull.
BLACK / GRAY
Black tube with gray decor. Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
Karl confirms the fit
Specifications are the start of the conversation.
Karl matches the tender to your yacht, dock, lift, passenger needs, and intended use. He also confirms the current model configuration and availability directly with you.
